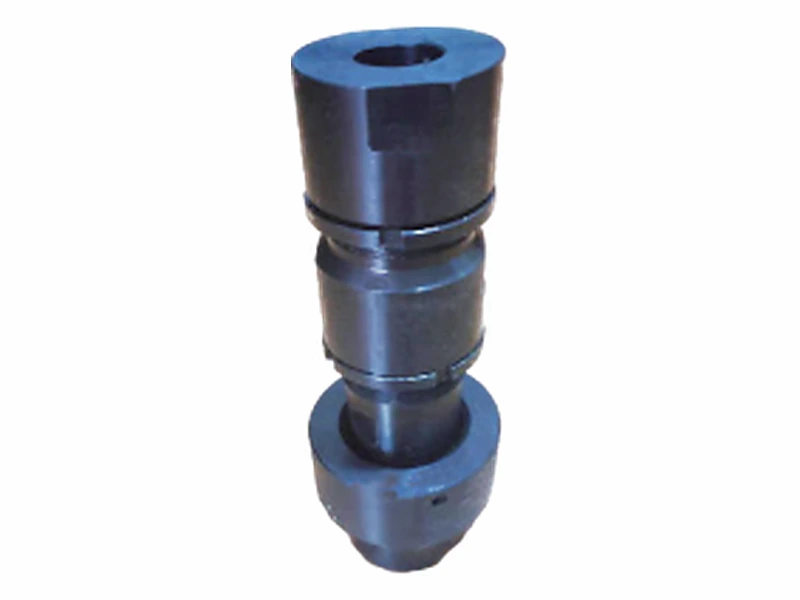

01 / 02A follower-type stuffing box that moves with lateral polished-rod displacement. It evens packing load, reduces one-sided wear and friction, and helps extend packing service life while limiting leakage and maintenance work.
| Parameter | Specification |
|---|---|
| Test pressure | 30 MPa |
| Working pressure | 20 MPa |
| Alignment range | 1–16 mm |
| Overall height | 450 mm |
| Medium temperature | −30 to 80 °C |
| Polished rod diameter | 25–38 mm |
| Connection | Clamp, internal thread or external thread |
Before installation, loosen the cap so the packing is not compressed. Pass the polished rod freely through the chamber, secure the wellhead connection, then tighten the sealing cap. The unit is pressure-tested and adjusted before shipment; install it as a complete assembly where possible.
For rod-pumped wells affected by random wellhead offset, lateral polished-rod movement, uneven packing wear or excessive packing friction.
YUXIN combines product engineering, machining, assembly, inspection and export coordination in Dongying, Shandong.
Send the existing model or drawing, connection dimensions, operating pressure and temperature, well conditions, quantity and destination.
Yes. YUXIN can review drawings and samples for material, tolerance, machining, inspection and batch-production feasibility.
Material and treatment options are selected around pressure, load, corrosion, wear, temperature and sour-service requirements.
Inspection planning can include dimensional checks, material documentation, assembly review and product-specific pressure or functional testing.
Yes. Batch supply, export packing and order documentation can be organized for distributors, service companies and project procurement.
Website data is for preliminary selection. Final compatibility is confirmed against the approved drawing, specification and purchase requirements.
