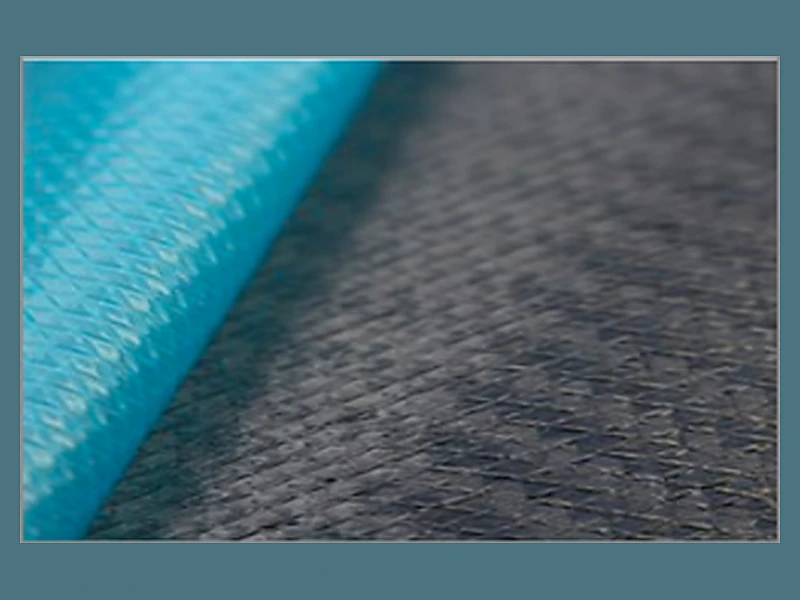

Carbon fiber fabric prepreg is a thermosetting material of carbon fiber woven cloth reinforced resin. During the production process, the braided fabric is impregnated with thermosetting resin, which gives it the characteristics of ultra high temperature resistance, excellent wet/thermal aging and excellent damage tolerance at high temperature.
| Model | Weaving way | Warp/weft fiber type | g/m2 Fiber gram weight g/m2 | % Resin content% | g/m2 Total gram weight of prepreg g/m2 |
|---|---|---|---|---|---|
| WP/CF 3K | plain | 3K | 200 | 40 | 333 |
| WP/CF 3K | 2/2 2/2twill | 3K | 200 | 40 | 333 |
| WP/CF 3K | satin | 3K | 300 | 40 | 500 |
| WP/CF 12K | plain | 12K | 480 | 40 | 800 |
| WP/CF 12K | 2/2 2/2twill | 12K | 480 | 40 | 800 |
| WP/CF 48K | plain | 48K | 800 | 40 | 1333 |
Note: ① resin content deviation: ±2%, fiber weight deviation: ±2%; ② not only limited to the table introduced in the model, can be customized according to customer requirements, from 198 to 800g/m2 can be; ③ Fiber cloth type: 3K, 12K, 24K and 48K, etc.
It is widely used in ships, civil aircraft, aerospace and other fields due to its high temperature resistance, excellent wet/thermal performance and excellent damage tolerance at high temperature.
