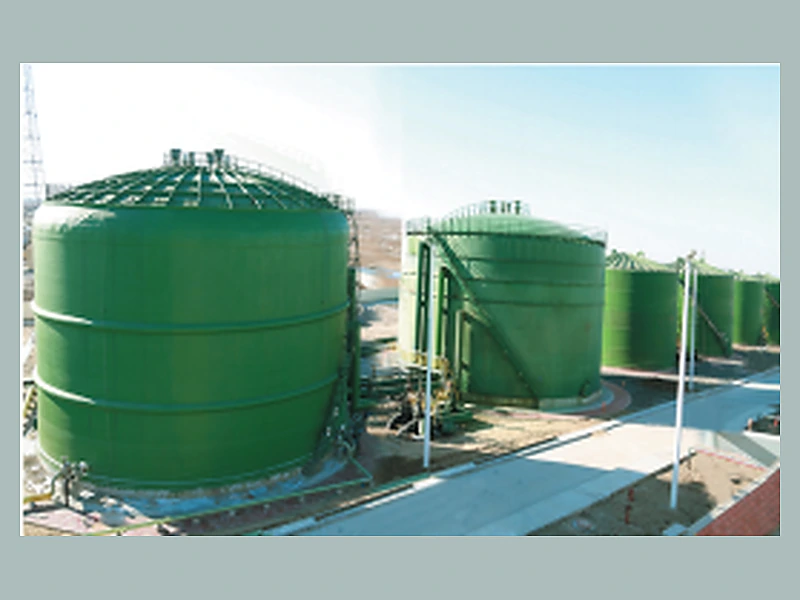

01 / 03GRP vessels are fabricated on site by filament winding, jetting molding, contact molding, etc. using fiberglass and its products as the reinforcing materials and resin as the base material.
Diameter ≥ 4.5m; capacity ≥ 100m3;
Can be designed and customized according to customers' requirements.
HG/T 20696-2018 Technical specification for fiber reinforced plastic chemical equipment
HG/T 3983-2007 Filament wound Glass-fiber reinforced thermosetting resin chemical resistant large tanks made on site
SY/T 4130-2024 Specification for construction of glass fiber reinforced thermosetting resin on-site winding vertical storage tanks
| Volume | Diameter | Wall height |
|---|---|---|
| m3 | m | m |
| 100 | 5.0 | 5.6 |
| 200 | 6.5 | 6.5 |
| 300 | 7.5 | 7.5 |
| 400 | 8.0 | 8.7 |
| 500 | 9.0 | 8.7 |
| 700 | 10.0 | 9.5 |
| 1000 | 11.0 | 11.0 |
| 1000 | 11.5 | 10.5 |
| 1500 | 15.0 | 8.9 |
| 2000 | 16.0 | 11.0 |
| 3000 | 19.0 | 11.7 |
| 5000 | 23.6 | 12.5 |
Note:
the above specification parameters are for reference only, and can be customized according to customer's requirements.
Petroleum, chemical, medicine, food brewing, etc.
YUXIN combines product engineering, machining, assembly, inspection and export coordination in Dongying, Shandong.
Send the existing model or drawing, connection dimensions, operating pressure and temperature, well conditions, quantity and destination.
Yes. YUXIN can review drawings and samples for material, tolerance, machining, inspection and batch-production feasibility.
Material and treatment options are selected around pressure, load, corrosion, wear, temperature and sour-service requirements.
Inspection planning can include dimensional checks, material documentation, assembly review and product-specific pressure or functional testing.
Yes. Batch supply, export packing and order documentation can be organized for distributors, service companies and project procurement.
Website data is for preliminary selection. Final compatibility is confirmed against the approved drawing, specification and purchase requirements.
A casing compensation device that permits controlled relative tubular movement during steam injection, reducing thermal loads transmitted through…
View product
An API 16A double ram blowout preventer combines two independently operated ram cavities in one pressure-containing body. Each…
View product

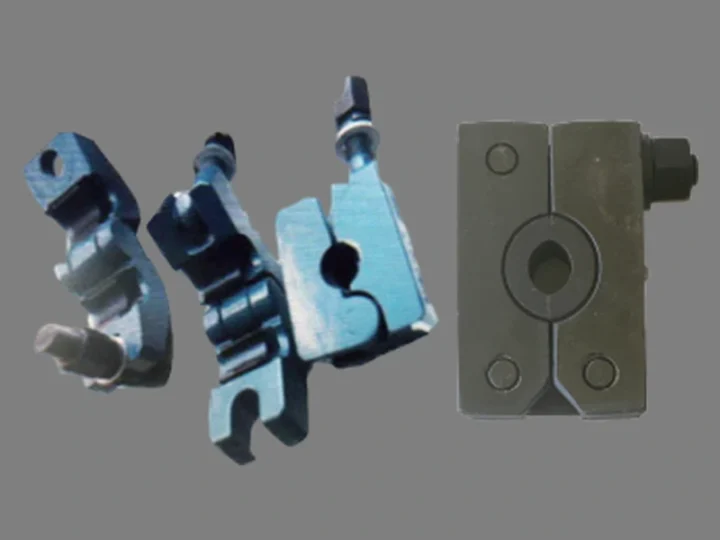

A polished rod clamp manufactured for secure load transfer without damaging the polished rod surface.
