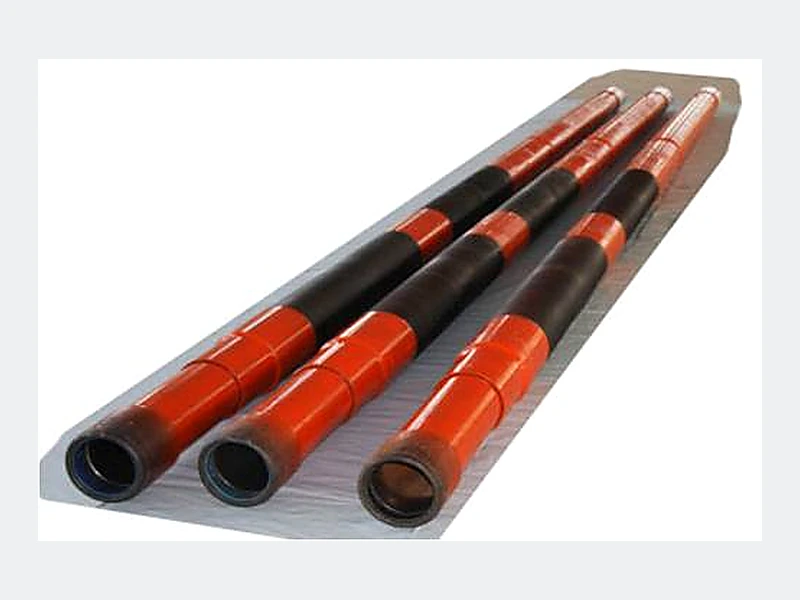

Drill-Free Horizontal-Well Cementing and Completion Tool
Overview
The tool is mainly used to provide a cementing circulation path during cementing above the screen.
Direct ManufacturerDrawing-Based SupplyExport Support
Product Advantages
- Does not change the oilfield's existing cementing procedure and is compatible with conventional cementing.
- The retrievable structure preserves the specified casing bore for later operations.
- Avoids drill-out damage to the cement sheath and helps maintain cementing quality.
- Avoids drill-out damage to the string and possible thread loosening or disconnection.
- Reduces the completion drill-out process and shortens the well-construction cycle.
- The drillable structure allows drill-out to continue if retrieval is unsuccessful.
Technical Specifications
| Overall Length (mm) | 6800 |
|---|---|
| Maximum OD (mm) | 215 |
| Element Inflation Pressure (MPa) | 7 |
| Circulation-Port Opening Pressure (MPa) | 16-18 |
| Circulation-Port Closing Pressure (MPa) | 20 |
| Retrieval Force (kN) | 200 |
Manufacturing Support
Built for Controlled Oilfield Supply
YUXIN combines product engineering, machining, assembly, inspection and export coordination in Dongying, Shandong.
20+Years of industry experience
5,000+ m²Manufacturing base
40+Equipment sets
30+Core product series
Product FAQ
Before You Request a Quote
What information is needed to confirm the correct configuration?
Send the existing model or drawing, connection dimensions, operating pressure and temperature, well conditions, quantity and destination.
Can this product be manufactured from a drawing or sample?
Yes. YUXIN can review drawings and samples for material, tolerance, machining, inspection and batch-production feasibility.
Which materials and surface treatments are available?
Material and treatment options are selected around pressure, load, corrosion, wear, temperature and sour-service requirements.
How is the product inspected before shipment?
Inspection planning can include dimensional checks, material documentation, assembly review and product-specific pressure or functional testing.
Can YUXIN support distributor and project orders?
Yes. Batch supply, export packing and order documentation can be organized for distributors, service companies and project procurement.
How is final compatibility confirmed?
Website data is for preliminary selection. Final compatibility is confirmed against the approved drawing, specification and purchase requirements.
