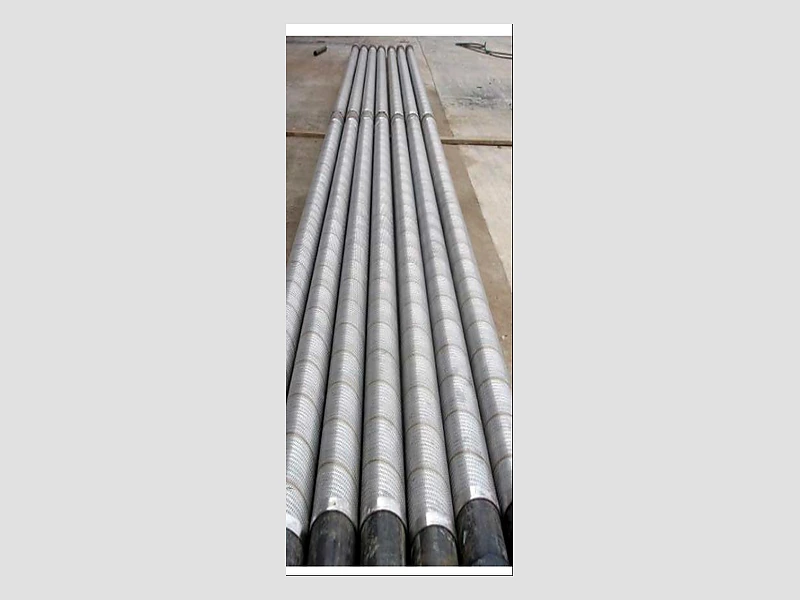

A multilayer stainless-steel sand screen for open-hole and cased-hole horizontal completions in unconsolidated sandstone. The base-pipe perforation pattern and filtration layers are selected to provide controlled sand retention.
| Model | LJSG-196 | LJSG-154 | LJSG-132 | LJSG-110 |
|---|---|---|---|---|
| Overall length (m) | 11 | 9 | 4.8 | 4.8 |
| Maximum OD (mm) | 196 | 154 | 132 | 110 |
| Minimum ID (mm) | 159.4 | 124 | 100.5 | 76 |
| Filtration rating | 80-200 | 80-200 | 80-200 | 80-200 |
| 80-200 | ||||
| μm | 80-200 | 80-200 | 80-200 | 80-200 |
| Working temperature (°C) | 360 | 360 | 360 | 360 |
| Connection thread | 7LCSG/7BCSG | 5 1⁄2LCSG | 4 1⁄2TBG | 3 1⁄2TBG |
| Base-pipe material | N80/TP110 | N80 | N80 | N80 |
Used for sand control in loose sandstone horizontal-well completions.
YUXIN combines product engineering, machining, assembly, inspection and export coordination in Dongying, Shandong.
Send the existing model or drawing, connection dimensions, operating pressure and temperature, well conditions, quantity and destination.
Yes. YUXIN can review drawings and samples for material, tolerance, machining, inspection and batch-production feasibility.
Material and treatment options are selected around pressure, load, corrosion, wear, temperature and sour-service requirements.
Inspection planning can include dimensional checks, material documentation, assembly review and product-specific pressure or functional testing.
Yes. Batch supply, export packing and order documentation can be organized for distributors, service companies and project procurement.
Website data is for preliminary selection. Final compatibility is confirmed against the approved drawing, specification and purchase requirements.
