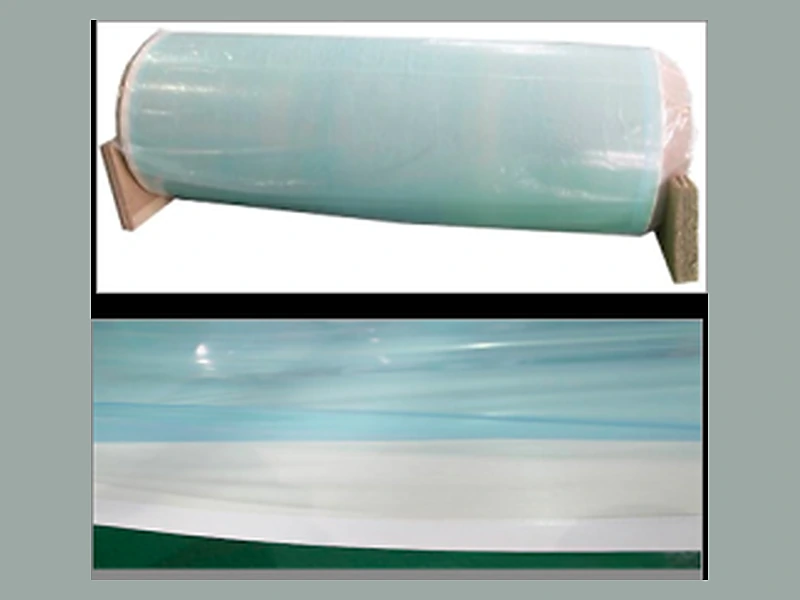

Unidirectional glass fiber prepreg is a thermosetting material of continuous glass fiber yarn reinforced resin. In the production process, the continuous glass fiber yarn is fully impregnated with epoxy resin. This production process enables the strip to have good mechanical properties, excellent heat and sound insulation and outstanding electrical insulation.
| Model | g/m2 Fiber gram weight g/m2 | mm Thick mm | % Resin content % |
|---|---|---|---|
| UD/GF 075 | 75 | 0.06 | 36-40 |
| UD/GF 100 | 100 | 0.08 | 30-40 |
| UD/GF 200 | 200 | 0.17 | 30-40 |
| UD/GF 400 | 400 | 0.35 | 30-40 |
| UD/GF 600 | 600 | 0.54 | 30-40 |
| UD/GF 800 | 800 | 0.73 | 30-40 |
Note: ① resin content deviation: ±2%, fiber weight deviation: ±3%; ② not limited to the table introduced in the model, can be customized according to customer requirements, from 75~800g/m2; ③ Fiber yarn type: E or S high strength glass fiber.
Due to good heat insulation, sound insulation, electrical insulation and good mechanical properties and other advantages are widely used in the field of construction.
YUXIN combines product engineering, machining, assembly, inspection and export coordination in Dongying, Shandong.
Send the existing model or drawing, connection dimensions, operating pressure and temperature, well conditions, quantity and destination.
Yes. YUXIN can review drawings and samples for material, tolerance, machining, inspection and batch-production feasibility.
Material and treatment options are selected around pressure, load, corrosion, wear, temperature and sour-service requirements.
Inspection planning can include dimensional checks, material documentation, assembly review and product-specific pressure or functional testing.
Yes. Batch supply, export packing and order documentation can be organized for distributors, service companies and project procurement.
Website data is for preliminary selection. Final compatibility is confirmed against the approved drawing, specification and purchase requirements.
