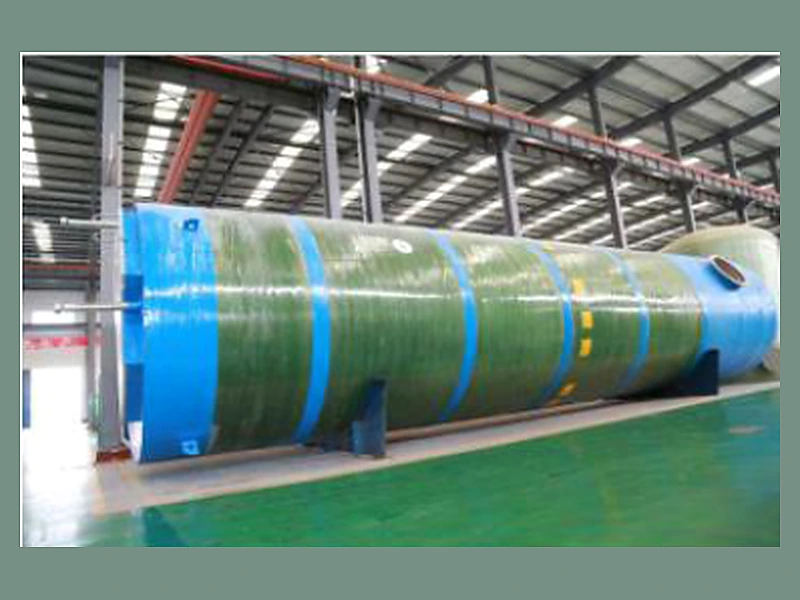

01 / 02It is an assemblage of FRP barrel, submersible sewage pump, integrated pipe network and automated control system, used for slow storage and the lifting of city sewage, rainwater, etc.
Diameter ≥ 1m; capacity ≥ 5m3;
Can be designed and customized according to customers' requirements.
HG/T 20696-2018 Technical specification for fiber reinforced plastic chemical equipment
Q/SXD 053-2018 Glass Fiber Filament Wound Reinforced Thermosetting Resin Integrated Pump Station
| Diameter | Height | Volume |
|---|---|---|
| mm | mm | m3 |
| 1200 | 6000 | 7 |
| 1600 | 6000 | 12 |
| 2000 | 6000 | 18 |
| 2500 | 8000 | 40 |
| 3000 | 8000 | 56 |
| 3800 | 10000 | 110 |
| 6500 | 10000 | 330 |
Note: the above specification parameters are for reference only, and can be customized according to customer's requirements.
The integrated pump station with diameter ≥ 4000mm can be made and assembled on site.
Municipal water supply and drainage, sewage treatment and other areas.
YUXIN combines product engineering, machining, assembly, inspection and export coordination in Dongying, Shandong.
Send the existing model or drawing, connection dimensions, operating pressure and temperature, well conditions, quantity and destination.
Yes. YUXIN can review drawings and samples for material, tolerance, machining, inspection and batch-production feasibility.
Material and treatment options are selected around pressure, load, corrosion, wear, temperature and sour-service requirements.
Inspection planning can include dimensional checks, material documentation, assembly review and product-specific pressure or functional testing.
Yes. Batch supply, export packing and order documentation can be organized for distributors, service companies and project procurement.
Website data is for preliminary selection. Final compatibility is confirmed against the approved drawing, specification and purchase requirements.
