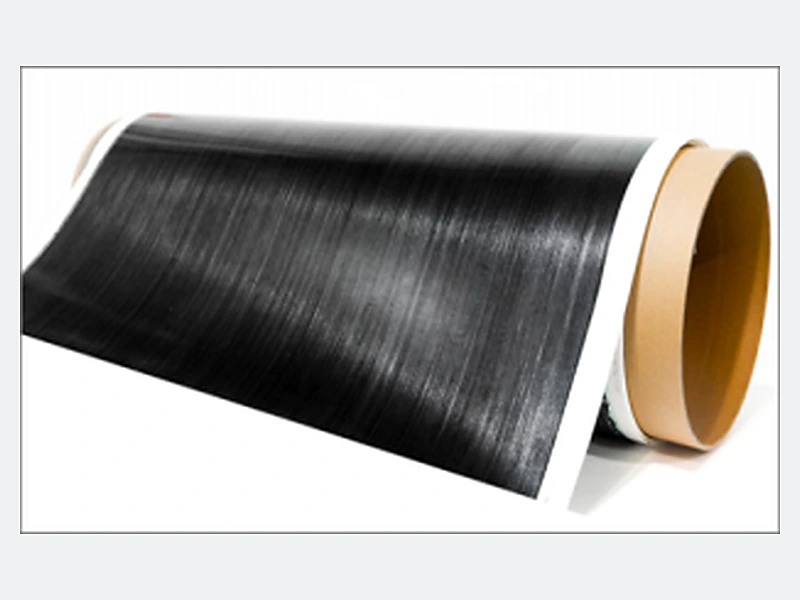

Unidirectional carbon fiber prepreg is a thermosetting material of continuous carbon fiber yarn reinforced resin. In the production process, continuous carbon fiber yarn is fully impregnated with thermosetting resin, which gives full play to the advantages of high strength, high modulus, energy absorption, shock absorption, self-lubrication and wear resistance of carbon fiber yarn.
| Model | g/m2 Fiber gram weight g/m2 | mm Thick mm | % Resin content % |
|---|---|---|---|
| UD/CF 030 | 30 | 0.03 | 48-60 |
| UD/CF 075 | 75 | 0.08 | 25-40 |
| UD/CF 100 | 100 | 0.10 | 20-40 |
| UD/CF 150 | 150 | 0.15 | 20-40 |
| UD/CF 200 | 200 | 0.20 | 20-40 |
| UD/CF 250 | 250 | 0.25 | 30-40 |
Note: ① resin content deviation: ±2%, fiber weight deviation: ±2%; ② not limited to the table introduced in the model, can be customized according to customer requirements, from 30~250g/m2; ③ Fiber yarn type: 3K, 12K, 24K and 48K, etc.
Due to its high strength, high modulus, energy absorption and shock absorption, self-lubrication, wear resistance and other advantages are widely used in wind turbine blades, military lightweight products and sports equipment.
