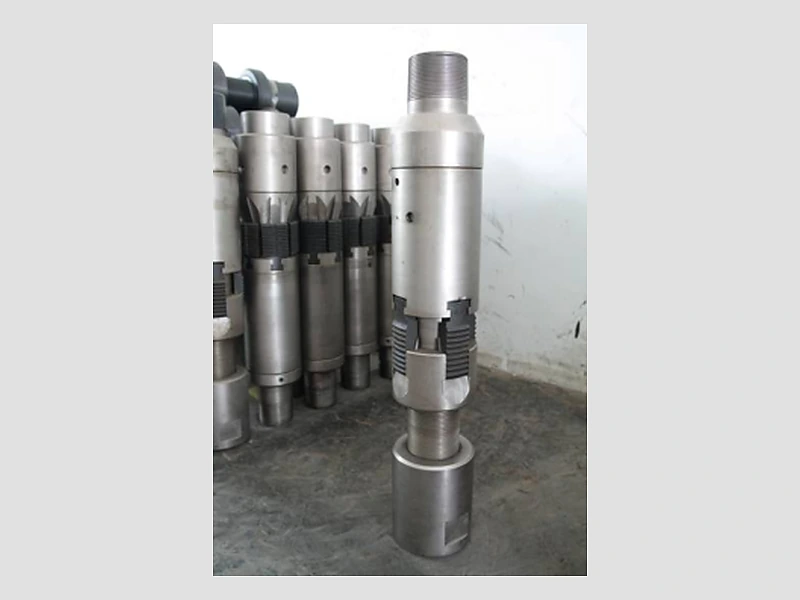

A tubing anchor whose cone is protected from direct axial string load. Rotating the tubing releases the cone connection to provide both drainage and anchor-release functions.
| Model | YGM-150 | YGM-115 |
|---|---|---|
| Anchor length | 590mm | 570mm |
| Maximum OD | φ150 | φ115 |
| Minimum ID | φ72 | φ60 |
| End connections | 3 1⁄2TBG(box top / pin bottom） | 2 7⁄8TBG(box top / pin bottom） |
| Applicable casing ID | φ159-φ169 | φ121-φ130 |
| Anchoring pressure | 6MPa | 6MPa |
| Working pressure | 25MPa | 25MPa |
Used to stabilize tubing and provide controlled release during completion or workover operations.
YUXIN combines product engineering, machining, assembly, inspection and export coordination in Dongying, Shandong.
Send the existing model or drawing, connection dimensions, operating pressure and temperature, well conditions, quantity and destination.
Yes. YUXIN can review drawings and samples for material, tolerance, machining, inspection and batch-production feasibility.
Material and treatment options are selected around pressure, load, corrosion, wear, temperature and sour-service requirements.
Inspection planning can include dimensional checks, material documentation, assembly review and product-specific pressure or functional testing.
Yes. Batch supply, export packing and order documentation can be organized for distributors, service companies and project procurement.
Website data is for preliminary selection. Final compatibility is confirmed against the approved drawing, specification and purchase requirements.
