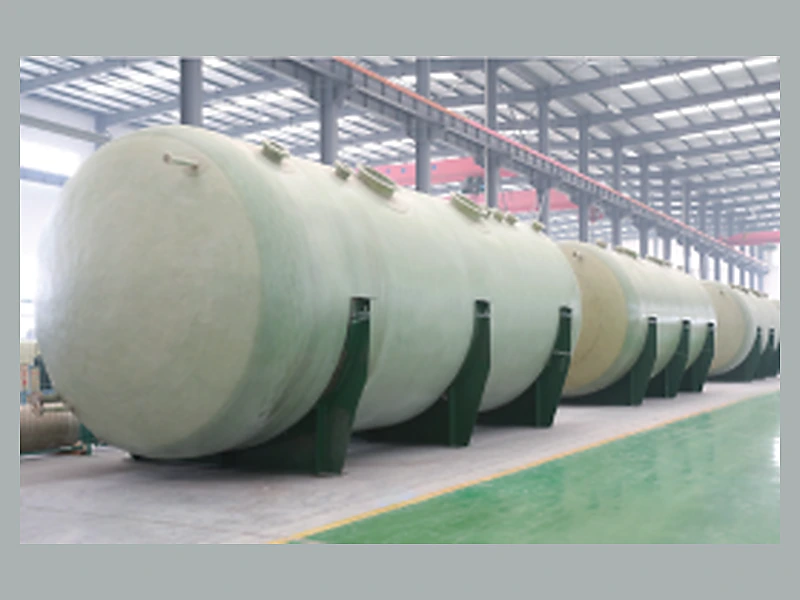

01 / 02GRP vessels are fabricated in shops by filament winding, jetting molding, contact molding with fiberglass and its products as the reinforcing materials and resin as the base material.
Diameter ≤ 4m; capacity ≤ 150m3;
Can be designed and customized according to customers' requirements.
JC/T 587—2012 Filament wound glass fiber reinforced thermoset resin corrosion resistant vertical tanks
JC/T 718—2012 Filament wound glass fiber reinforced thermoset resin corrosion resistant horizontal tanks
| Diameter | Volume | Length | Diameter | Volume | Length |
|---|---|---|---|---|---|
| mm | m3 | mm | mm | m3 | mm |
| 1800 | 10 | 4080 | 3200 | 30 | 4000 |
| 1800 | 15 | 6050 | 3200 | 40 | 5250 |
| 1800 | 20 | 8010 | 3200 | 50 | 6490 |
| 2200 | 15 | 4130 | 3600 | 40 | 4230 |
| 2200 | 20 | 5450 | 3600 | 50 | 5210 |
| 2200 | 30 | 8080 | 3600 | 60 | 6200 |
| 2600 | 30 | 5870 | 4000 | 60 | 5110 |
| 2600 | 35 | 6810 | 4000 | 80 | 6700 |
| 2600 | 40 | 7750 | 4000 | 100 | 8290 |
Note: the above specification parameters are for reference only, and can be customized according to customer's requirements.
Petroleum, chemical industry, medicine, food brewing and other fields.
YUXIN combines product engineering, machining, assembly, inspection and export coordination in Dongying, Shandong.
Send the existing model or drawing, connection dimensions, operating pressure and temperature, well conditions, quantity and destination.
Yes. YUXIN can review drawings and samples for material, tolerance, machining, inspection and batch-production feasibility.
Material and treatment options are selected around pressure, load, corrosion, wear, temperature and sour-service requirements.
Inspection planning can include dimensional checks, material documentation, assembly review and product-specific pressure or functional testing.
Yes. Batch supply, export packing and order documentation can be organized for distributors, service companies and project procurement.
Website data is for preliminary selection. Final compatibility is confirmed against the approved drawing, specification and purchase requirements.
