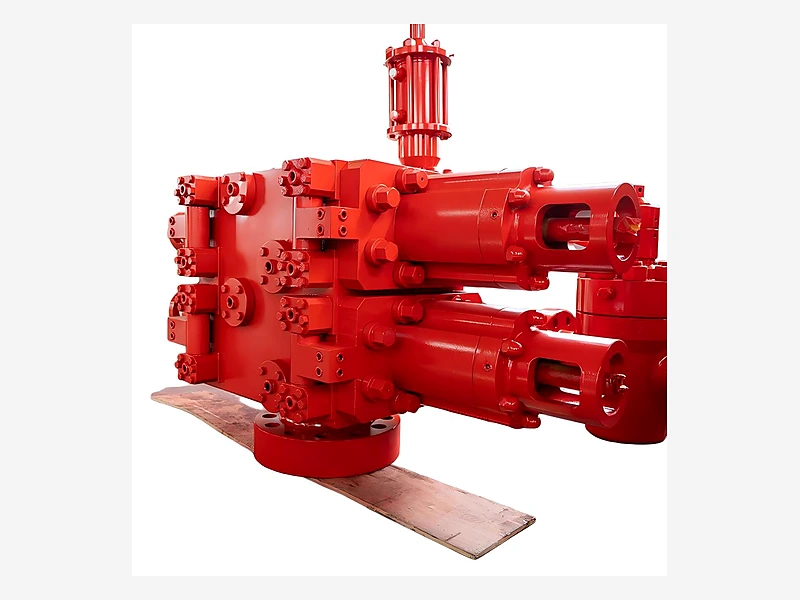

01 / 03An API 16A double ram blowout preventer combines two independently operated ram cavities in one pressure-containing body. Each cavity can be configured with fixed pipe rams, variable-bore rams, blind rams, shear rams or blind-shear ram assemblies to match the well program and required emergency functions. Available configurations cover nominal bore sizes from approximately 4-1/16 to 26-3/4 inches and rated working pressures from 2,000 to 20,000 psi.
| Parameter | Available Specification |
|---|---|
| Applicable standard | API Spec 16A, applicable current edition |
| API product category | Ram BOP |
| Number of ram cavities | Two |
| Nominal bore range | Approximately 4-1/16–26-3/4 in |
| Working pressure | 2,000–20,000 psi |
| Operation | Hydraulic |
| Locking method | Manual or hydraulic |
| Ram types | Pipe, variable-bore, blind, shear or blind-shear |
| Side-door design | Rotary or linear-opening configuration |
| Top connection | Flanged or studded |
| Bottom connection | Flanged or studded |
| Side outlets | Available according to approved design |
| Material class | According to the API and project specification |
| Temperature class | According to the API and operating conditions |
| Sour service | Available according to specified H2S conditions |
| Performance requirement | Project-specific PR level |
| Certification | Applicable API certificate |
| Inspection | Factory and third-party inspection as specified |
Standard 5,000 psi 2FZ-series models are available for conventional drilling and workover operations. High-pressure and ultra-high-pressure configurations can be engineered for deep wells, ultra-deep wells, HPHT wells and unconventional oil and gas projects.
YUXIN combines product engineering, machining, assembly, inspection and export coordination in Dongying, Shandong.
Send the existing model or drawing, connection dimensions, operating pressure and temperature, well conditions, quantity and destination.
Yes. YUXIN can review drawings and samples for material, tolerance, machining, inspection and batch-production feasibility.
Material and treatment options are selected around pressure, load, corrosion, wear, temperature and sour-service requirements.
Inspection planning can include dimensional checks, material documentation, assembly review and product-specific pressure or functional testing.
Yes. Batch supply, export packing and order documentation can be organized for distributors, service companies and project procurement.
Website data is for preliminary selection. Final compatibility is confirmed against the approved drawing, specification and purchase requirements.
