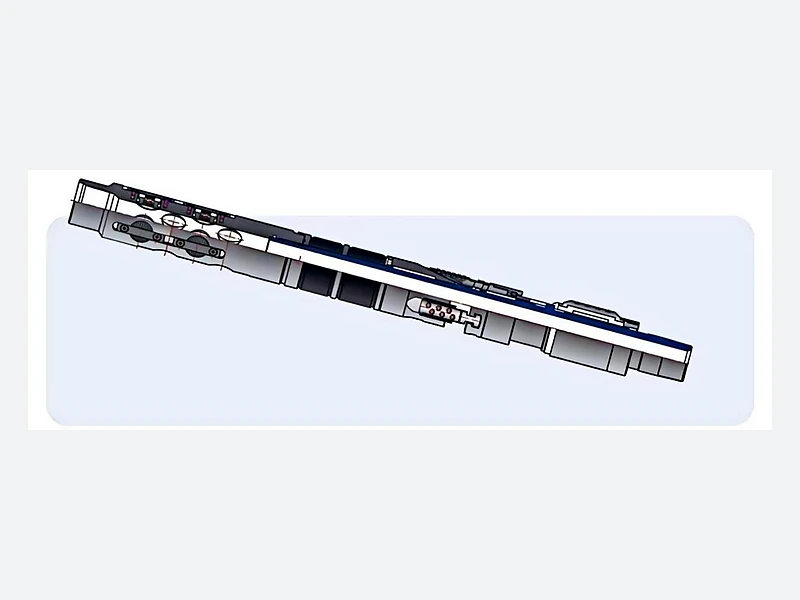

A mechanical-set slip packer integrating a hydraulic anchor, sealing element, slips and friction blocks. Rotating and setting down the string moves the J-slot mechanism into the set position; lifting releases the packer.
| Model | Tool OD (mm) | Tool ID (mm) | Working differential (MPa) | Setting load (kN) | EU/NU connection | Temperature rating (°C) |
|---|---|---|---|---|---|---|
| RTTS-115 | 115 | 50 | 50 | 80-120 | 2-7/8" | 120 |
| RTTS-148 | 148 | 62 | 50 | 100-140 | 3-1/2" | 120 |
Used for zonal water injection, acidizing, well testing and squeeze-cement operations.
YUXIN combines product engineering, machining, assembly, inspection and export coordination in Dongying, Shandong.
Send the existing model or drawing, connection dimensions, operating pressure and temperature, well conditions, quantity and destination.
Yes. YUXIN can review drawings and samples for material, tolerance, machining, inspection and batch-production feasibility.
Material and treatment options are selected around pressure, load, corrosion, wear, temperature and sour-service requirements.
Inspection planning can include dimensional checks, material documentation, assembly review and product-specific pressure or functional testing.
Yes. Batch supply, export packing and order documentation can be organized for distributors, service companies and project procurement.
Website data is for preliminary selection. Final compatibility is confirmed against the approved drawing, specification and purchase requirements.
