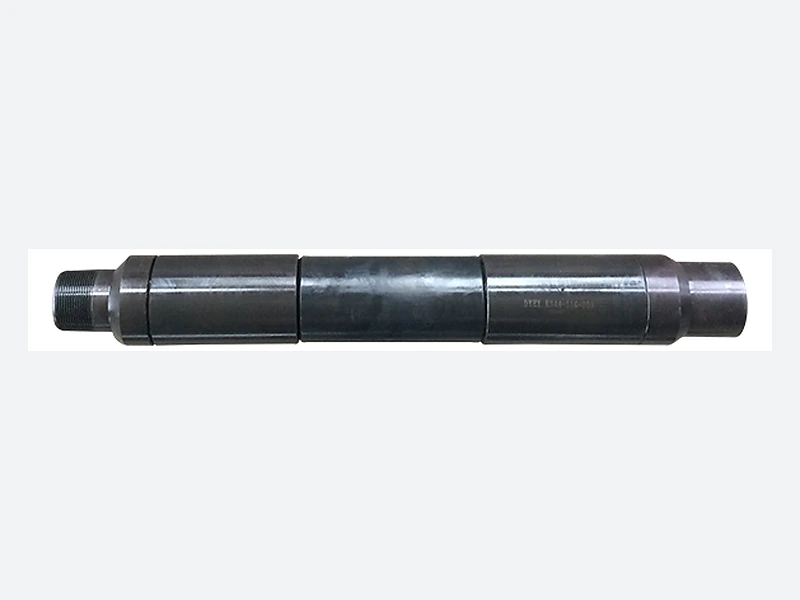

A K344 expansion packer used with sand-jet tools for single-zone or multizone acidizing and fracturing. Tubing pressure expands the sealing element; annular pressure opens the reverse-wash piston, and pressure bleed-off releases the tool.
| Model | K344-112 | K344-114 | K344-148 |
|---|---|---|---|
| Maximum outer diameter (mm) | Φ112 | Φ114 | Φ148 |
| Inner diameter (mm) | Φ50 | Φ50 | Φ60 |
| Total length (mm) | 1350 | 1360 | 1470 |
| Operating pressure (MPa) | 80 | 80 | 80 |
| Working temp. (°C) | 150 | 150 | 150 |
| Setting pressure (MPa) | 2-3 | 2-3 | 2-3 |
| Backflushing discharging capacity (m3/h) | 30 | 30 | 30 |
| Releasing force (kN) | Automatic releasing | Automatic releasing | Automatic releasing |
| Connecting Threads at both ends | 2 7⁄8 UPTBG | 2 7⁄8 UPTBG | 2 7⁄8 UPTBG |
Used in treatment strings for selective single-zone or multizone acidizing and fracturing.
YUXIN combines product engineering, machining, assembly, inspection and export coordination in Dongying, Shandong.
Send the existing model or drawing, connection dimensions, operating pressure and temperature, well conditions, quantity and destination.
Yes. YUXIN can review drawings and samples for material, tolerance, machining, inspection and batch-production feasibility.
Material and treatment options are selected around pressure, load, corrosion, wear, temperature and sour-service requirements.
Inspection planning can include dimensional checks, material documentation, assembly review and product-specific pressure or functional testing.
Yes. Batch supply, export packing and order documentation can be organized for distributors, service companies and project procurement.
Website data is for preliminary selection. Final compatibility is confirmed against the approved drawing, specification and purchase requirements.
