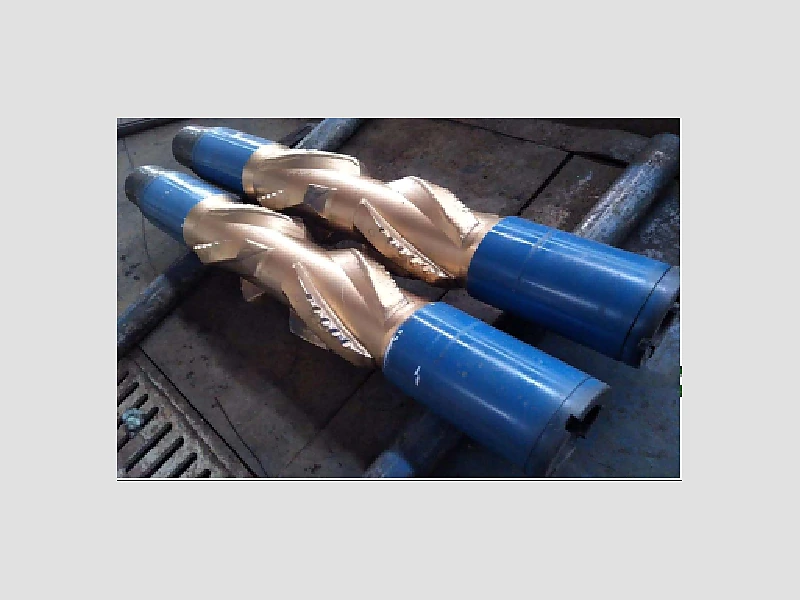

01 / 02An eccentric while-drilling micro reamer with no moving or welded parts. It slightly enlarges and smooths the wellbore during normal drilling and can ream both forward and backward.
| Parameter | Specification |
|---|---|
| Length | 1170mm |
| Body OD | 168mm |
| Maximum pass-through diameter | 202.4mm |
| Applicable hole size | 215.9mm |
| Reamed diameter | 220mm |
| Connection | 411×410 |
| ID (mm) | 76.2mm |
| Tensile strength | 6664kN |
| Torque capacity | 159kN•m |
| Blade arrangement | 2 groups / 8 blades |
Used in horizontal drilling to improve hole quality and reduce restrictions before casing or completion installation.
YUXIN combines product engineering, machining, assembly, inspection and export coordination in Dongying, Shandong.
Send the existing model or drawing, connection dimensions, operating pressure and temperature, well conditions, quantity and destination.
Yes. YUXIN can review drawings and samples for material, tolerance, machining, inspection and batch-production feasibility.
Material and treatment options are selected around pressure, load, corrosion, wear, temperature and sour-service requirements.
Inspection planning can include dimensional checks, material documentation, assembly review and product-specific pressure or functional testing.
Yes. Batch supply, export packing and order documentation can be organized for distributors, service companies and project procurement.
Website data is for preliminary selection. Final compatibility is confirmed against the approved drawing, specification and purchase requirements.
