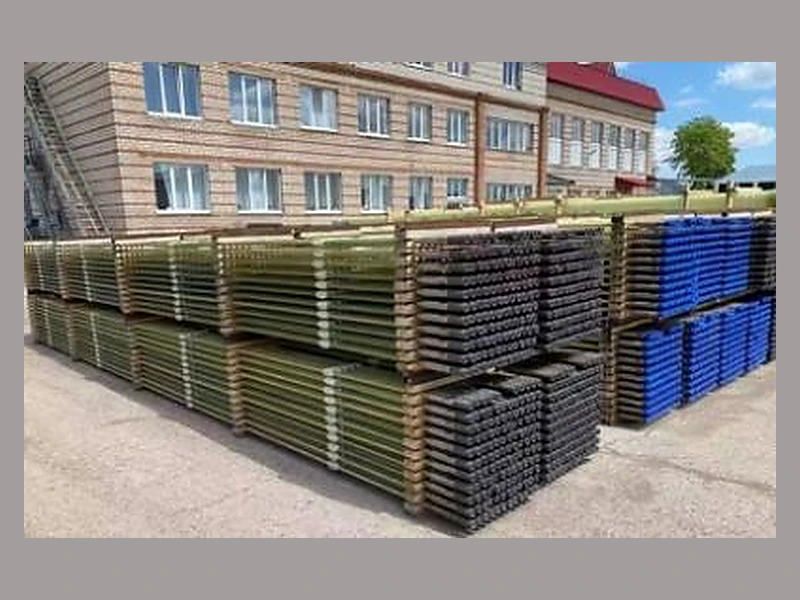

01 / 03A pultruded glass-fibre/resin rod body fitted with steel end connections, designed to reduce rod-string weight and improve corrosion resistance in selected pumping wells.
| Parameter | Specification |
|---|---|
| Reference standard | API Spec 11B |
| Nominal diameters | 22, 25 and 32 mm |
| End-connection material | 35CrMo alloy steel |
The rod body is made from glass fibre and resin by pultrusion. The supplied document specifies 35CrMo alloy-steel end connections.
Continuous pultrusion forms the composite rod body before the steel end connections are assembled and inspected.
Suitable for selected small-pump deep wells, large-pump lifting applications and corrosive wells. The supplied guidance excludes pump-sticking conditions and severe well deviation above 30° or abrupt doglegs. Hybrid rod-string design should be confirmed for each well.
YUXIN combines product engineering, machining, assembly, inspection and export coordination in Dongying, Shandong.
Send the existing model or drawing, connection dimensions, operating pressure and temperature, well conditions, quantity and destination.
Yes. YUXIN can review drawings and samples for material, tolerance, machining, inspection and batch-production feasibility.
Material and treatment options are selected around pressure, load, corrosion, wear, temperature and sour-service requirements.
Inspection planning can include dimensional checks, material documentation, assembly review and product-specific pressure or functional testing.
Yes. Batch supply, export packing and order documentation can be organized for distributors, service companies and project procurement.
Website data is for preliminary selection. Final compatibility is confirmed against the approved drawing, specification and purchase requirements.
