Vessels are manufactured by 3-dimensional enveloped winding technology using glass fiber and its products as the reinforcing materials and resin as the base material, which can withstand certain pressure.
Diameter ≤ 4000mm; capacity ≤ 150m3;
The product of inner diameter and pressure ≤ 2.4MPa · m;
Can be designed and customized according to customers' requirements.
GB/T 34329-2017 General requirements of fiber reinforced plastics pressure vessel
| Diameter | Volume | Length | Diameter | Volume | Length |
|---|---|---|---|---|---|
| mm | m3 | mm | mm | m3 | mm |
| 1800 | 10 | 4080 | 3200 | 30 | 4000 |
| 1800 | 15 | 6050 | 3200 | 40 | 5250 |
| 1800 | 20 | 8010 | 3200 | 50 | 6490 |
| 2200 | 15 | 4130 | 3600 | 40 | 4230 |
| 2200 | 20 | 5450 | 3600 | 50 | 5210 |
| 2200 | 30 | 8080 | 3600 | 60 | 6200 |
| 2600 | 30 | 5870 | 4000 | 60 | 5110 |
| 2600 | 35 | 6810 | 4000 | 80 | 6700 |
| 2600 | 40 | 7750 | 4000 | 100 | 8290 |
Note: the above specification parameters are for reference only, and can be customized according to customer's requirements.

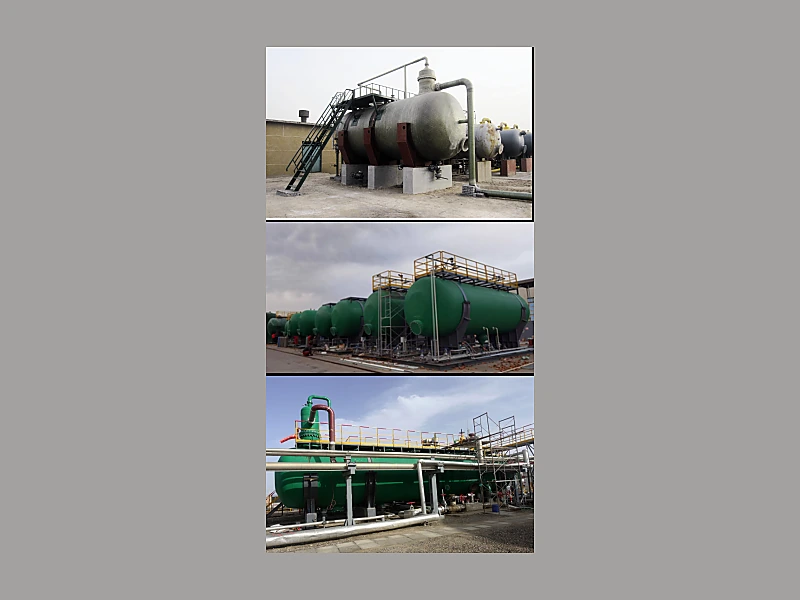

Oilfield three-phase separators, high-efficiency coalescing oil removers, long-lasting filters, absorption towers, reaction vessels, and other pressure vessels.
YUXIN combines product engineering, machining, assembly, inspection and export coordination in Dongying, Shandong.
Send the existing model or drawing, connection dimensions, operating pressure and temperature, well conditions, quantity and destination.
Yes. YUXIN can review drawings and samples for material, tolerance, machining, inspection and batch-production feasibility.
Material and treatment options are selected around pressure, load, corrosion, wear, temperature and sour-service requirements.
Inspection planning can include dimensional checks, material documentation, assembly review and product-specific pressure or functional testing.
Yes. Batch supply, export packing and order documentation can be organized for distributors, service companies and project procurement.
Website data is for preliminary selection. Final compatibility is confirmed against the approved drawing, specification and purchase requirements.
