APPLICATION-SPECIFIC CONFIGURATION

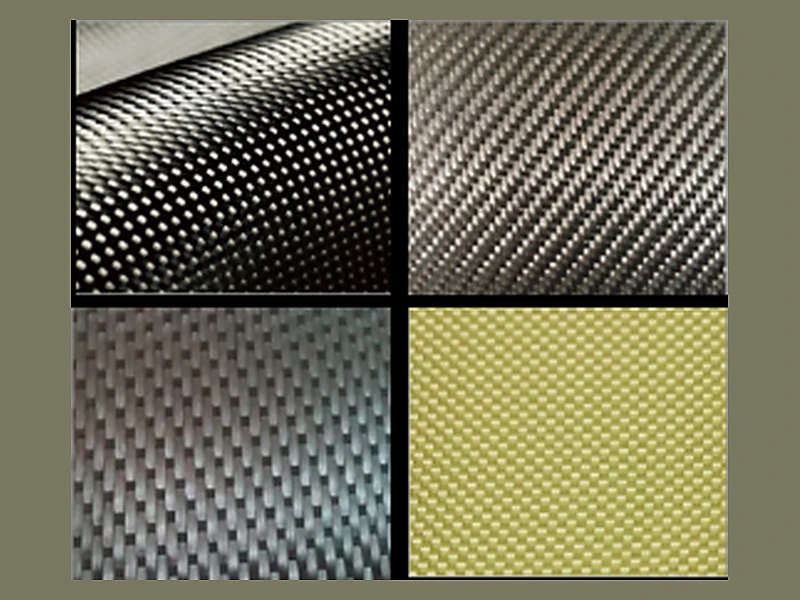

Carbon, Aramid and Glass Fiber Fabrics

Name: Carbon, Aramid and Glass Fiber Fabrics
Brand: YUXIN Machinery

Overview

Fabric is the main raw material for preparing prepreg material and high performance composite material. The rigid rapier loom can weave a variety of light and heavy yarns into plain, twill, satin and other fancy patterns.

Direct ManufacturerDrawing-Based SupplyExport Support

Product Advantages

A variety of light and heavy fabrics; Plain, twill,Satin and other fancy
Independent electronic let-off and coiling The warp and weft are more even

01 / Technical Data

Technical Specifications

Carbon fibre fabric

Fabric type	Weaving way	Warp/weft fiber type	g/m² Fiber gram weight g/m²	mm Width mm
WP/CF 198	plain	3K	200	300~1600
WP/CF 198	2/2 2/2 twill	3K	200	300~1600
WP/CF 285	satin	3K	300	300~1600
WP/CF 400	2/2 2/2 twill	12K	480	300~1600
WP/CF 600	plain	24K	640	300~1600
WP/CF 800	plain	48K	800	300~1600

Aramid fiber fabric

Fabric type	Weaving way	Warp/weft fiber type	g/m² Fiber gram weight g/m²	mm Width mm
WP/AF 280	plain	500D	280	300~1600
WP/AF 280	2/2 2/2 twill	500D	280	300~1600
WP/AF 415	satin	500D	415	300~1600
WP/AF 623	2/2 2/2 twill	800D	623	300~1600
WP/AF 830	plain	1000D	830	300~1600

Note:

① fiber weight deviation: ±2%;

② Not limited to the table introduced in the model, can be customized according to customer requirements, fiber gram weight in 200~830g/m2 interval optional, width from 300~1600mm interval optional;

③ Carbon fiber yarn types: 3K, 12K, 24K and 48K, etc. Types of arylon yarn: 100D, 200D, 300D, 500D, 800D and 1000D;

④ Glass, basalt and other fibers are also suitable for weaving.

Manufacturing Support

Built for Controlled Oilfield Supply

YUXIN combines product engineering, machining, assembly, inspection and export coordination in Dongying, Shandong.

20+Years of industry experience

5,000+ m²Manufacturing base

40+Equipment sets

30+Core product series

Product FAQ

Before You Request a Quote

What information is needed to confirm the correct configuration?

Send the existing model or drawing, connection dimensions, operating pressure and temperature, well conditions, quantity and destination.

Can this product be manufactured from a drawing or sample?

Yes. YUXIN can review drawings and samples for material, tolerance, machining, inspection and batch-production feasibility.

Which materials and surface treatments are available?

Material and treatment options are selected around pressure, load, corrosion, wear, temperature and sour-service requirements.

How is the product inspected before shipment?

Inspection planning can include dimensional checks, material documentation, assembly review and product-specific pressure or functional testing.

Can YUXIN support distributor and project orders?

Yes. Batch supply, export packing and order documentation can be organized for distributors, service companies and project procurement.

How is final compatibility confirmed?

Website data is for preliminary selection. Final compatibility is confirmed against the approved drawing, specification and purchase requirements.
