MODEL: ZDQ Series

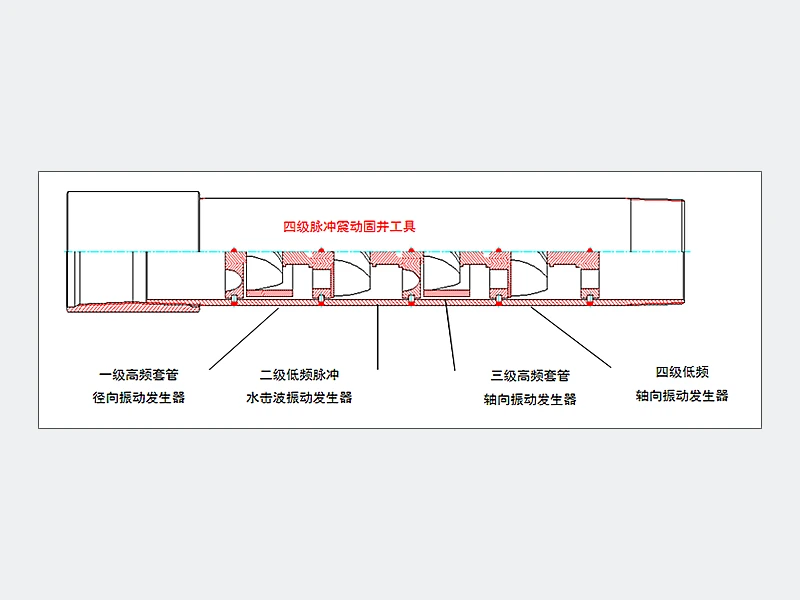

Four-Stage Pulse Swirl Oscillator
Overview
The four-stage pulse swirl oscillator uses hydraulic pulse-vibration principles. Hydraulic vibration and pulses generate waves that transfer energy to the medium and disrupt structures between particles and molecules.
This action improves the rheological behavior of drilling fluid and cement slurry, changes particle and molecular motion, reduces drilling-fluid viscosity, improves displacement efficiency and strengthens cement bonding at both interfaces of the cement sheath.
Direct ManufacturerDrawing-Based SupplyExport Support
Technical Specifications
| Specification | Maximum OD | Length (mm) | Rated Working Pressure (MPa) | End Connection Threads |
|---|---|---|---|---|
| ZDQ-5 1⁄2 | 156 | 940 | 25 | 5 1⁄2 LTC |
| ZDQ-7 | 196 | 1035 | 25 | 7 LTC |
Manufacturing Support
Built for Controlled Oilfield Supply
YUXIN combines product engineering, machining, assembly, inspection and export coordination in Dongying, Shandong.
20+Years of industry experience
5,000+ m²Manufacturing base
40+Equipment sets
30+Core product series
Product FAQ
Before You Request a Quote
What information is needed to confirm the correct configuration?
Send the existing model or drawing, connection dimensions, operating pressure and temperature, well conditions, quantity and destination.
Can this product be manufactured from a drawing or sample?
Yes. YUXIN can review drawings and samples for material, tolerance, machining, inspection and batch-production feasibility.
Which materials and surface treatments are available?
Material and treatment options are selected around pressure, load, corrosion, wear, temperature and sour-service requirements.
How is the product inspected before shipment?
Inspection planning can include dimensional checks, material documentation, assembly review and product-specific pressure or functional testing.
Can YUXIN support distributor and project orders?
Yes. Batch supply, export packing and order documentation can be organized for distributors, service companies and project procurement.
How is final compatibility confirmed?
Website data is for preliminary selection. Final compatibility is confirmed against the approved drawing, specification and purchase requirements.
