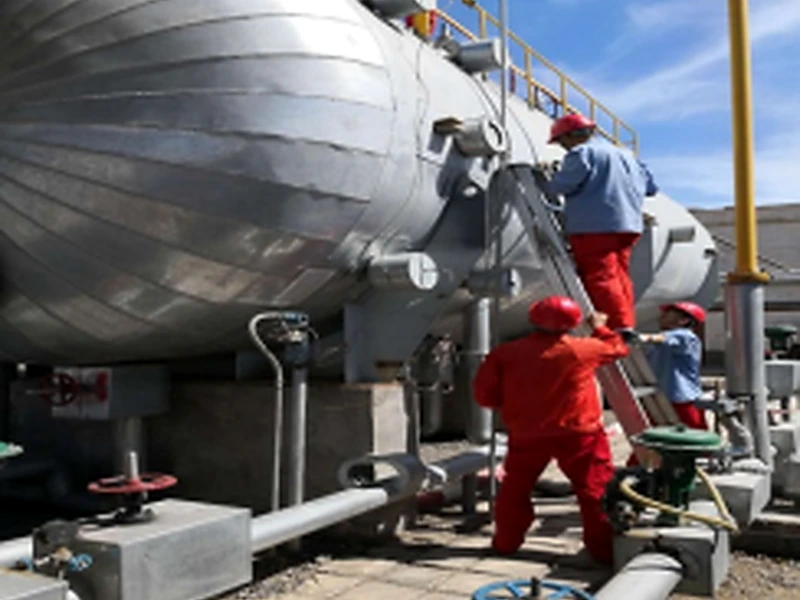

The three-phase separator utilizes the differences in density among oil, gas, and water, along with the principle of coalescence separation, to achieve the preliminary separation of oil, gas, and water. The body and internal filler of the composite material (fiberglass) three-phase separator are entirely made of composite materials. The equipment body uses fiberglass and its products as reinforcement materials and resin as the matrix material, manufactured using contact molding, spray molding, and three-dimensional envelope winding processes.
Diameter: ≤ 4 m, volume: ≤ 150 m3;
Pressure and inner diameter product: ≤ 2.4 MPa ·m;
Custom design is available based on actual requirements.
TSG 21-2016 Supervision Regulation on Safety Technology for Stationary Pressure Vessel
GB/T 34329-2017 General Requirements of Fiber Reinforced Plastic Pressure Vessel HG/T 20696-2018 Technical Code of Reinforced Plastics Equipment for Chemical Industry
Designed for the separation and treatment of oil, water, and gas in oil and gas fields
YUXIN combines product engineering, machining, assembly, inspection and export coordination in Dongying, Shandong.
Send the existing model or drawing, connection dimensions, operating pressure and temperature, well conditions, quantity and destination.
Yes. YUXIN can review drawings and samples for material, tolerance, machining, inspection and batch-production feasibility.
Material and treatment options are selected around pressure, load, corrosion, wear, temperature and sour-service requirements.
Inspection planning can include dimensional checks, material documentation, assembly review and product-specific pressure or functional testing.
Yes. Batch supply, export packing and order documentation can be organized for distributors, service companies and project procurement.
Website data is for preliminary selection. Final compatibility is confirmed against the approved drawing, specification and purchase requirements.
