A chemical consolidant formulated to bond quartz grains across a broad particle-size range. It is designed to accommodate clay, silt and fine sand, with higher consolidation strength generally obtained in finer formations.
| No. | Property | Specification |
|---|---|---|
| 1 | Appearance | Viscous liquid |
| 2 | Viscosity (mPa·s) | 200-500 |
| 3 | Compressive strength (MPa) | 3-10 |
| 4 | Gas permeability of consolidated sand (μm²) | 30-80 Permeability retention >80% |
| 5 | Erosion resistance at 1,000 mL/min | Sand production below 0.001% |

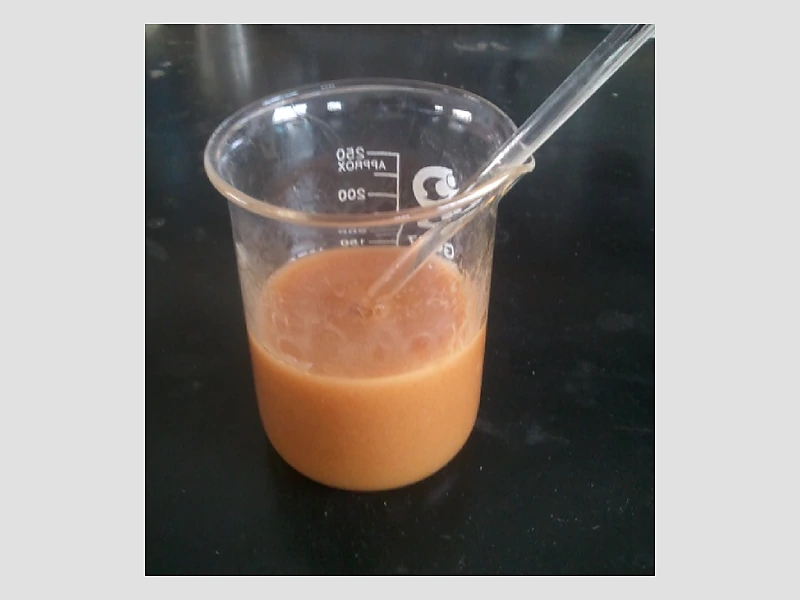

The supplied material is a viscous liquid chemical consolidant.
Used for chemical sand consolidation in weak or unconsolidated production formations.
YUXIN combines product engineering, machining, assembly, inspection and export coordination in Dongying, Shandong.
Send the existing model or drawing, connection dimensions, operating pressure and temperature, well conditions, quantity and destination.
Yes. YUXIN can review drawings and samples for material, tolerance, machining, inspection and batch-production feasibility.
Material and treatment options are selected around pressure, load, corrosion, wear, temperature and sour-service requirements.
Inspection planning can include dimensional checks, material documentation, assembly review and product-specific pressure or functional testing.
Yes. Batch supply, export packing and order documentation can be organized for distributors, service companies and project procurement.
Website data is for preliminary selection. Final compatibility is confirmed against the approved drawing, specification and purchase requirements.
