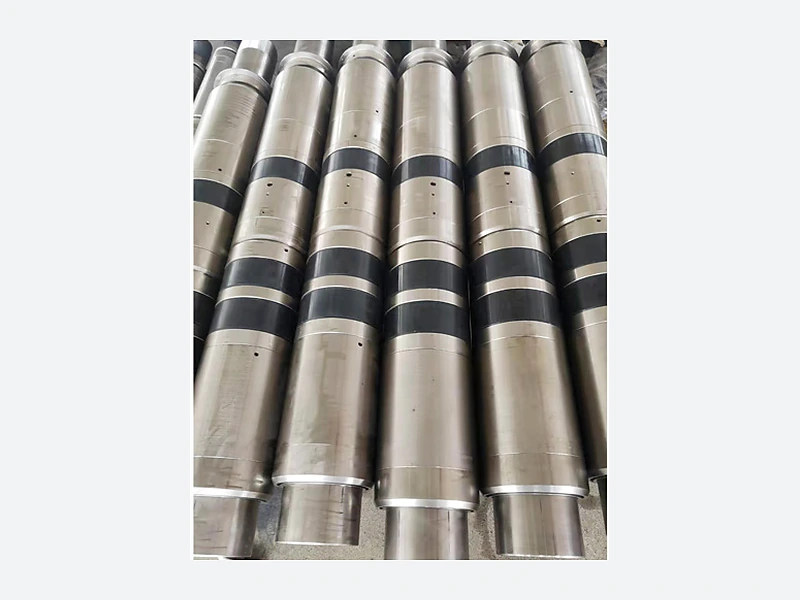

A hydraulically set production packer with bidirectional slips and a mechanical lock. It can be run in single or multiple stages, including in deviated and directional wells, and is released by lifting the tubing to shear the release pin.
| Model | 7in | 5 1⁄2in |
|---|---|---|
| Overall length (mm) | 1555 | 1590 |
| Maximum OD (mm) | 115 | 150 |
| Minimum ID (mm) | 48 | 62 |
| Applicable casing ID (mm) | 121-127 | 158-166 |
| UP/TBG end connections | 2 7⁄8 | 2 7⁄8 |
| Setting differential (MPa) | 15-20 | 13-15 |
| Working differential (MPa) | 20 upper / 20 lower | 20 upper / 20 lower |
| Working temperature (°C) | 120 | 120 |
The source specifies stepped pressure holds at 5, 8, 12, 15, 18 and 20 MPa for 3 minutes at each stage, followed by an 8–10 t lifting load for release.
Used for zonal production and water shutoff.
YUXIN combines product engineering, machining, assembly, inspection and export coordination in Dongying, Shandong.
Send the existing model or drawing, connection dimensions, operating pressure and temperature, well conditions, quantity and destination.
Yes. YUXIN can review drawings and samples for material, tolerance, machining, inspection and batch-production feasibility.
Material and treatment options are selected around pressure, load, corrosion, wear, temperature and sour-service requirements.
Inspection planning can include dimensional checks, material documentation, assembly review and product-specific pressure or functional testing.
Yes. Batch supply, export packing and order documentation can be organized for distributors, service companies and project procurement.
Website data is for preliminary selection. Final compatibility is confirmed against the approved drawing, specification and purchase requirements.
