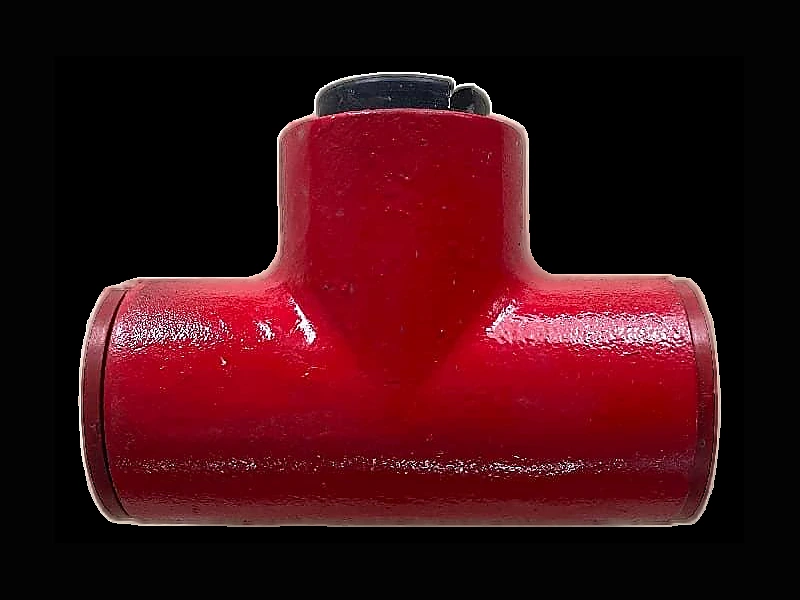

Oilfield Pipeline Tee - product image 1
APPLICATION-SPECIFIC CONFIGURATION

Oilfield Pipeline Tee

Overview

An oilfield pipeline tee is a core branch connection for oil and gas piping. Installed where a main line meets a branch line, it supports flow diversion, combination and directional changes. T-pattern and Y-pattern designs can be manufactured with equal or reducing outlets to suit the piping arrangement.

Direct ManufacturerDrawing-Based SupplyExport Support

Product Advantages

  • Equal-bore or reducing-bore configurations
  • T-pattern and Y-pattern options
  • Welded, threaded, flanged or compression connections
  • Connection type selected for pressure, temperature and maintenance needs
01 / Technical Data

Technical Specifications

ProductDimensions (mm)Weight (kg)
Pipeline Tee203 × 152 × 957.2
02 / Production

Manufacturing Control

Manufacturing methods include hot forming, hydraulic bulging and welded forming. Raw materials are checked for chemical composition and mechanical properties. Key process parameters are monitored during manufacture, and finished parts are subjected to visual, dimensional, non-destructive and pressure testing in accordance with applicable requirements, including API requirements where specified.

03 / Applications

Operating Applications

Used in oil and gas production facilities, long-distance transmission pipelines and refining or petrochemical process units.

Manufacturing Support

Built for Controlled Oilfield Supply

YUXIN combines product engineering, machining, assembly, inspection and export coordination in Dongying, Shandong.

20+Years of industry experience
5,000+ m²Manufacturing base
40+Equipment sets
30+Core product series
Product FAQ

Before You Request a Quote

What information is needed to confirm the correct configuration?

Send the existing model or drawing, connection dimensions, operating pressure and temperature, well conditions, quantity and destination.

Can this product be manufactured from a drawing or sample?

Yes. YUXIN can review drawings and samples for material, tolerance, machining, inspection and batch-production feasibility.

Which materials and surface treatments are available?

Material and treatment options are selected around pressure, load, corrosion, wear, temperature and sour-service requirements.

How is the product inspected before shipment?

Inspection planning can include dimensional checks, material documentation, assembly review and product-specific pressure or functional testing.

Can YUXIN support distributor and project orders?

Yes. Batch supply, export packing and order documentation can be organized for distributors, service companies and project procurement.

How is final compatibility confirmed?

Website data is for preliminary selection. Final compatibility is confirmed against the approved drawing, specification and purchase requirements.
