01 / 02Marine-offshore pipe is a kind of FRP pipe used in marine industry, which is mainly used in marine platforms and ship systems.
Diameter:DN25-DN900;
Pressure Rating:1.6Mpa.
CCS Rules for Classification of Sea-Going Steel Ships and Rules for Materials and Welding
IMO Resolution A.753 ( 18 ) Guidelines for the Application of Plastic Pipes on Ships
| Nominal diameter | Nominal ID | Nominal thickness | Nominal OD | Wall thickness tolerance | Nominal weight |
|---|---|---|---|---|---|
| in | mm | mm | mm | mm | Kg/m |
| 1.5 | 38.10 | 5.0 | 48.1 | +0.5 -0 | 1.2 |
| 2 | 50.00 | 5.0 | 60.0 | +0.5 -0 | 1.6 |
| 2.5 | 60.00 | 5.0 | 75.0 | +0.5 -0 | 2.0 |
| 3 | 80.00 | 5.0 | 90.0 | +0.5 -0 | 2.4 |
| 4 | 100.00 | 5.0 | 110.0 | +0.5 -0 | 3.0 |
| 6 | 150.00 | 5.4 | 160.8 | +0.5 -0 | 4.8 |
| 8 | 200.00 | 7.0 | 214.0 | +0.5 -0 | 8.3 |
| 10 | 250.00 | 8.4 | 266.8 | +0.5 -0 | 12.5 |
| 12 | 300.00 | 9.5 | 319.0 | +0.5 -0 | 16.9 |
| 14 | 350.00 | 10.8 | 371.6 | +0.5 -0 | 22.4 |
| 16 | 400.00 | 12.1 | 424.2 | +0.5 -0 | 28.7 |
| 18 | 450.00 | 14.2 | 478.4 | +0.5 -0 | 37.9 |
| 20 | 500.00 | 15.1 | 530.2 | +0.5 -0 | 44.7 |
| 22 | 550.00 | 16.2 | 582.4 | +0.5 -0 | 52.7 |
| 24 | 600.00 | 17.6 | 635.2 | +0.5 -0 | 62.5 |
| 26 | 650.00 | 18.2 | 686.4 | +0.5 -0 | 69.9 |
| 28 | 700.00 | 19.8 | 739.6 | +0.5 -0 | 81.9 |
| 30 | 750.00 | 21.0 | 792.0 | +0.5 -0 | 93.1 |
| 32 | 800.00 | 22.2 | 844.4 | +0.5 -0 | 104.9 |
| 36 | 900.00 | 24.8 | 949.6 | +0.5 -0 | 131.9 |

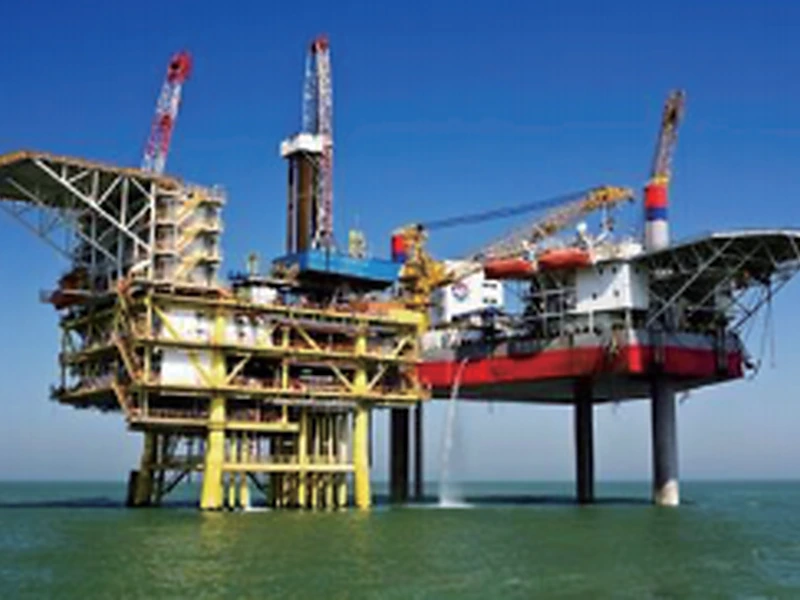

Marine platforms and ships.
Can be designed and customized according to customers' requirements.
YUXIN combines product engineering, machining, assembly, inspection and export coordination in Dongying, Shandong.
Send the existing model or drawing, connection dimensions, operating pressure and temperature, well conditions, quantity and destination.
Yes. YUXIN can review drawings and samples for material, tolerance, machining, inspection and batch-production feasibility.
Material and treatment options are selected around pressure, load, corrosion, wear, temperature and sour-service requirements.
Inspection planning can include dimensional checks, material documentation, assembly review and product-specific pressure or functional testing.
Yes. Batch supply, export packing and order documentation can be organized for distributors, service companies and project procurement.
Website data is for preliminary selection. Final compatibility is confirmed against the approved drawing, specification and purchase requirements.
