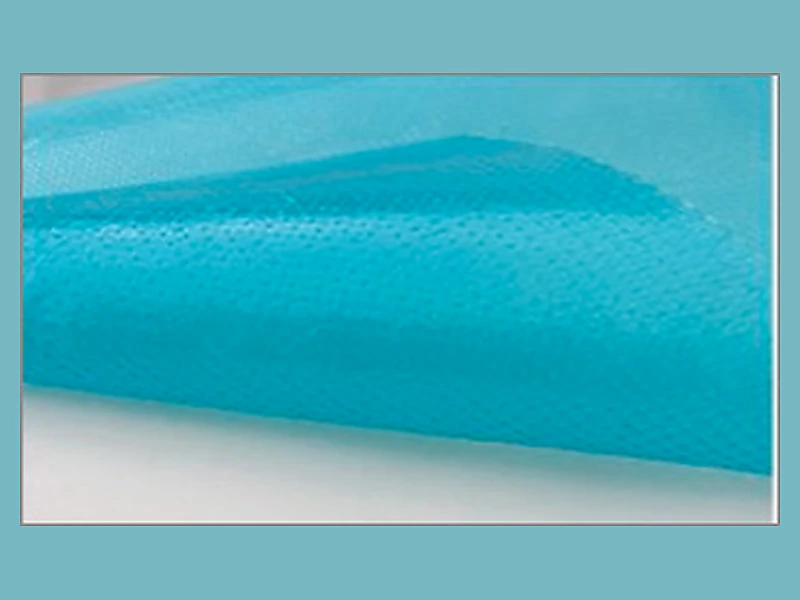

Fiber glass fabric prepreg is a thermosetting material of fiberglass woven cloth reinforced resin. In the production process, the woven glass fabric is impregnated with epoxy or phenolic resin. This production process makes the woven glass fabric have good electrical insulation, rapid curing at medium temperature and excellent mechanical properties
| Model | Weaving way | Warp/weft fiber type | g/m2 Fiber gram weight g/m2 | % Resin content% | g/m2 Total gram weight of prepreg g/m2 |
|---|---|---|---|---|---|
| WP/G 100 | plain | 68tex | 100 | 40 | 166 |
| WP/G 300 | 2/2 2/2 twill | 200tex | 300 | 40 | 500 |
| WP/G 284 | satin | 200tex | 284 | 40 | 473 |
| WP/G 390 | 2/2 2/2 twill | 300tex | 390 | 40 | 650 |
| WP/G 540 | plain | 600tex | 540 | 40 | 900 |
| WP/G 800 | plain | 1200tex | 800 | 40 | 1333 |
Note: ① resin content deviation: ±2%, fiber weight deviation: ±3%; ② not limited to the table introduced in the model, can be customized according to customer requirements, from 100~800g/m2; ③ Fiber cloth type: E or S high strength glass fiber cloth.
Due to its good electrical insulation, fast curing and excellent mechanical properties, it is widely used in medical devices, new energy vehicles, civil industry and communication industry.
YUXIN combines product engineering, machining, assembly, inspection and export coordination in Dongying, Shandong.
Send the existing model or drawing, connection dimensions, operating pressure and temperature, well conditions, quantity and destination.
Yes. YUXIN can review drawings and samples for material, tolerance, machining, inspection and batch-production feasibility.
Material and treatment options are selected around pressure, load, corrosion, wear, temperature and sour-service requirements.
Inspection planning can include dimensional checks, material documentation, assembly review and product-specific pressure or functional testing.
Yes. Batch supply, export packing and order documentation can be organized for distributors, service companies and project procurement.
Website data is for preliminary selection. Final compatibility is confirmed against the approved drawing, specification and purchase requirements.
