APPLICATION-SPECIFIC CONFIGURATION

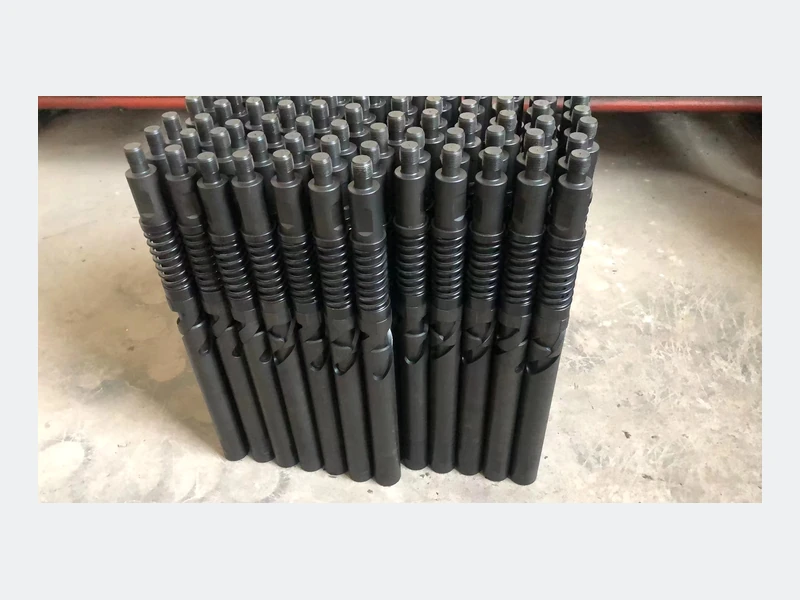

Connecting-Tripping Device
Overview
The connecting-tripping device is a downhole tool for petroleum drilling and production machinery. It is mainly used to connect and separate the sucker-rod string and rod pump.
During pump inspection or retrieval, it allows the pump body and rod string to be disconnected safely to help prevent equipment damage.
Direct ManufacturerDrawing-Based SupplyExport Support
Technical Specifications
Main Structure
- Center rod: connects the upper connection and sealing body and transmits force.
- Anti-release sleeve: encounters resistance while the rod string is lifted and drives the outer sliding sleeve.
- Center tube: works with the anti-release sleeve to control ball position.
- Outer sliding sleeve: works with the inner sleeve to control ball entry and exit.
Operating Sequence
- Connection: lowering the sucker-rod string moves the center rod and inner sleeve downward. The outer spring drives the outer sleeve and pushes the balls into the annular groove of the center rod.
- Disconnection: lifting the sucker rod causes the anti-release sleeve to encounter resistance and move the outer sleeve. The balls enter the annular space between the anti-release sleeve and center tube, completing separation.
Manufacturing Support
Built for Controlled Oilfield Supply
YUXIN combines product engineering, machining, assembly, inspection and export coordination in Dongying, Shandong.
20+Years of industry experience
5,000+ m²Manufacturing base
40+Equipment sets
30+Core product series
Product FAQ
Before You Request a Quote
What information is needed to confirm the correct configuration?
Send the existing model or drawing, connection dimensions, operating pressure and temperature, well conditions, quantity and destination.
Can this product be manufactured from a drawing or sample?
Yes. YUXIN can review drawings and samples for material, tolerance, machining, inspection and batch-production feasibility.
Which materials and surface treatments are available?
Material and treatment options are selected around pressure, load, corrosion, wear, temperature and sour-service requirements.
How is the product inspected before shipment?
Inspection planning can include dimensional checks, material documentation, assembly review and product-specific pressure or functional testing.
Can YUXIN support distributor and project orders?
Yes. Batch supply, export packing and order documentation can be organized for distributors, service companies and project procurement.
How is final compatibility confirmed?
Website data is for preliminary selection. Final compatibility is confirmed against the approved drawing, specification and purchase requirements.
