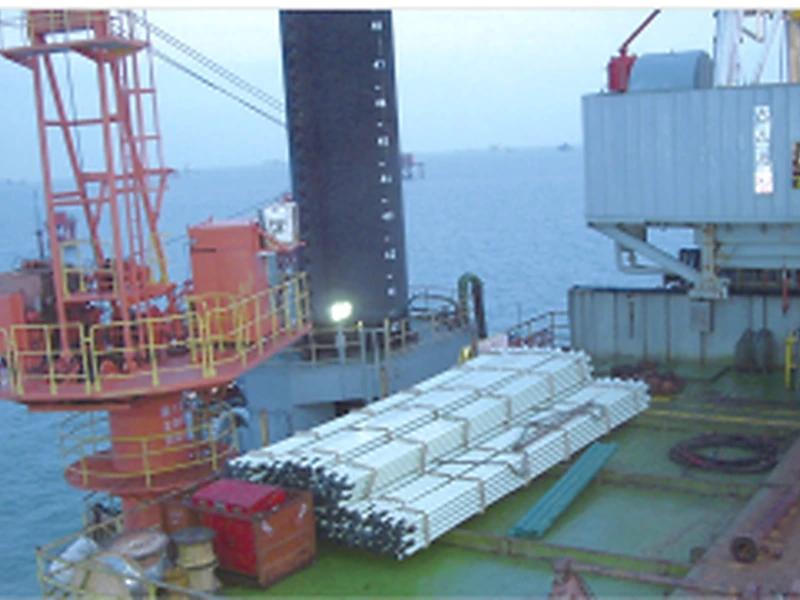

01 / 02GRE tubing is made by winding and curing at high temperature using high-strength glass fiber rovings as reinforcement and epoxy resin as the base material.
Dameter：DN32-DN300;
Pressure rathg：0-20MPa;
Can be designed and customized according to customers' requirements.
SY/T 7043-2016 High pressure fiberglass tubing for petroleum and natural gas industries
API 15HR-2016 High Pressure Fiberglass Line Pipe
ISO 14692-2017 Petroleum and natural gas industries — Glass-reinforced plastics (GRP) piping
| Spec. | Pressure rating | Thread spec. | Nominal ID | Couping OD | Nominal weight | Nominal length |
|---|---|---|---|---|---|---|
| in | MPa | in | mm | mm | kg/m | m |
| 2 | 16 | 2 3⁄8 | 48 | 84 | 2.5 | 9.0 |
| 2 | 20 | 2 3⁄8 | 48 | 92 | 2.9 | 9.0 |
| 2 1⁄2 | 12 | 2 7⁄8 | 56 | 104 | 2.6 | 9.0 |
| 2 1⁄2 | 14 | 2 7⁄8 | 56 | 104 | 3 | 9.0 |
| 2 1⁄2 | 16 | 2 7⁄8 | 56 | 104 | 3.5 | 9.0 |
| 2 1⁄2 | 20 | 2 7⁄8 | 56 | 104 | 4.2 | 9.0 |
| 3 | 17 | 3 1⁄2 | 62 | 107 | 4.2 | 8.7 |
| 3 | 20 | 3 1⁄2 | 62 | 107 | 4.4 | 8.7 |
| 3 | 20 | 3 1⁄2 | 62 | 120 | 6 | 8.7 |
Note:
The above parameters are general information of our products and are design parameters based on special materials and technical status and cannot be used as inspection basis. In addition, our products are not limited to the above sizes and can be designed and manufactured as per customer demands.
Used for general water injection wells, sewage reinjection wells, polymer injection wells, etc.
YUXIN combines product engineering, machining, assembly, inspection and export coordination in Dongying, Shandong.
Send the existing model or drawing, connection dimensions, operating pressure and temperature, well conditions, quantity and destination.
Yes. YUXIN can review drawings and samples for material, tolerance, machining, inspection and batch-production feasibility.
Material and treatment options are selected around pressure, load, corrosion, wear, temperature and sour-service requirements.
Inspection planning can include dimensional checks, material documentation, assembly review and product-specific pressure or functional testing.
Yes. Batch supply, export packing and order documentation can be organized for distributors, service companies and project procurement.
Website data is for preliminary selection. Final compatibility is confirmed against the approved drawing, specification and purchase requirements.
